DAI-EL Peroxide Curable Terpolymers
DAI-EL Peroxide Curable Terpolymers have between 67% and 71% fluorine content.
They have better acid resistance, solvent resistance, and overall mechanical properties than bisphenol cured copolymers.
As with peroxide cured copolymers, some reduction in heat and compression set resistance is normal compared with bisphenol cured grades.
DESCRIPTION
Excellent characteristics
- Heat resistance （~200℃）
- Oil resistance
- Fuel resistance
- Low fuel permeation
- Solvent resistance
- Steam resistance
- Acid resistance
Applications

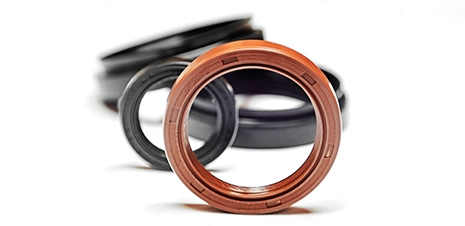

They are particularly suited for turbo charger hose, o-ring, oil seal and diaphragm applications in high-heat environments.
Compression and injection molding, low compression set and lower temperature grades are available.
Post curing can be omitted for these polymers.
GRADES & FEATURES
| GRADES | Fluorine content (mass%) |
Mooney Viscosity (ML1+10@121℃) |
Features | DOWNLOADS |
|---|---|---|---|---|
| G-901 | 70.5 | 48 | Highest fluorine content. Excellent chemical resistance, mechanical properties, steam and acid resistance. Suitable for transfer and compression molding. |
TECHNICAL DATA SHEET SAFETY DATA SHEET |
| G-902 | 70.5 | 19 | Highest fluorine content. Excellent chemical resistance, mechanical properties, steam and acid resistance. Suitable for injection, transfer and extrusion molding. |
TECHNICAL DATA SHEET SAFETY DATA SHEET |
| G-912 | 70.5 | 56 | Highest fluorine content. Excellent chemical, steam and acid resistance as well as good compression set. Suitable for injection, transfer and extrusion molding. |
TECHNICAL DATA SHEET SAFETY DATA SHEET |
| G-952 | 69 | 40 | Excellent mechanical properties, steam and acid resistance Good balance of chemical resistance and low temperature flexibility. Suitable for transfer and compression molding. |
TECHNICAL DATA SHEET SAFETY DATA SHEET |
| G-962 | 67 | 27 | Excellent mechanical properties, steam and acid resistance Good low temperature flexibility. Suitable for injection molding. |
TECHNICAL DATA SHEET SAFETY DATA SHEET |
| G-964 | 67 | 48 | Excellent mechanical properties, steam and acid resistance Good low temperature flexibility. Suitable for injection molding. |
TECHNICAL DATA SHEET SAFETY DATA SHEET |
| G-9062 | 70.5 | 23 | Highest fluorine content. Excellent compression set, chemical, steam and acid resistance. Excellent mold flow. Suitable for injection molding. |
TECHNICAL DATA SHEET SAFETY DATA SHEET |
| G-9074 | 70.5 | 42 | Highest fluorine content. Excellent compression set, chemical, steam and acid resistance. Excellent mold flow. Suitable for injection molding. |
TECHNICAL DATA SHEET SAFETY DATA SHEET |
| G-9503 | 69 | 30 | Excellent mechanical properties, steam and acid resistance Good balance of chemical resistance and low temperature flexibility. Suitable for injection molding. |
TECHNICAL DATA SHEET SAFETY DATA SHEET |
